Electrical Arc Suppression Blanket

Electrical Arc Suppression Blanket

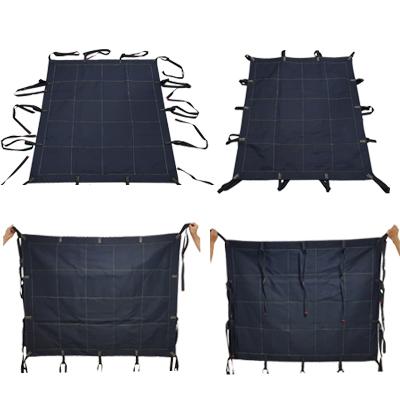

FP407 Electrical Arc Suppression Blanket

Product ID: FP407
  • The arc blast protective blanket is used as an additional protection to protect workers from the explosive and incendiary effects of electrical arcs and flashes. The blanket will reduce the risk of injury from blast and flame, but not an insulating blanket.
  • The blanket can be used in confined area, underground vaults, switchyards, and other locations where could be caused by faults in cable defects, in cable splices, joints, and at transformer terminals …etc.

Test report Download Now !
Specifications:
  • Material: 100% Aramid fabric and Nomex® fire-resistant outer cover sewn into pattern with hanging loops .
  • Performance: According to ASTM F2676-2019 standard test method for 3 options

    ►15.0 kA , BTP≧ 150 kA* cycles

    ►25.0 kA , BTP≧ 250 kA* cycles

    ►40.0 kA , BTP≧ 400 kA* cycles

  • Sizes / Weights: with 14 attachment loops

    ►1.2 x 1.5 meters / 2.1 kg (15KA)

    ►1.2 x 1.5 meters / 2.5 kg (25KA)

    ►1.2 x 1.5 meters / 2.9 kg (40KA)

    ►1.2 x 2.4 meters / 3.2 kg (15KA)

    ►1.2 x 2.4 meters / 3.7 kg (25KA)

    ►1.2 x 2.4 meters / 4.3 kg (40KA)

Features:
  • Color in dark blue (standard) .
  • 14 pieces adjustable webbing straps, 1 Carry bag (standard).
  • Sizes and colors are available to be customized.
Order Information:
  • Minimum Order: Negotiable
  • Branded Product
